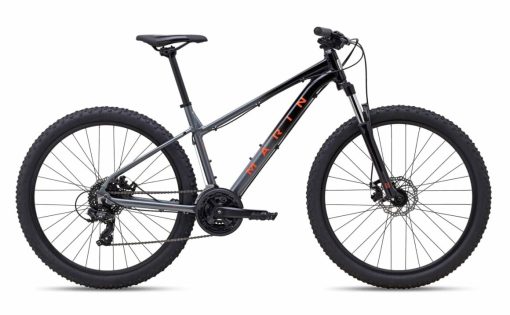

Wildcat Trail 1
$499.00
RECREATIONAL MOUNTAIN BIKING
ENTRY-LEVEL RIDERS
FITNESS DIRT ROAD RIDING
The Wildcat Trail family crosses boundaries between Trail and Sport mountain bikes, with the Wildcat Trail 5 and Wildcat Trail 3 designed for the female hardtail enthusiast looking for a full featured trail mountain bike, and the Wildcat 1 positioned for the recreational mountain bikers.
GALLERY
SPECIFICATIONS
-
FRAME
Series 1 6061 Aluminum, Women’s Specific Frame, 27.5” Wheels, Low Standover, 68mm BB shell, 135mm Forged Dropouts, Chainstay Mounted Disc Brakes
-
FRONT SUSPENSION
SR Suntour XCE Disc, 100mm Travel, Preload Adjustment, 46mm Offset
-
RIMS
Marin, Double Wall Alloy
-
HUB, REAR
Forged Alloy, Disc, 32H
-
HUB, FRONT
Forged Alloy, Disc, 32H
-
SPOKE, NIPPLES
Black Stainless Steel
-
TIRES
MTB, 27.5×2.25″
-
DERAILLEUR, REAR
Shimano Tourney, 7-Speed
-
DERAILLEUR, FRONT
Shimano FD-TY500
-
SHIFT LEVER
Shimano Tourney 3×7-Speed
-
CRANKSET
Alloy Crank, Steel Chainrings, 42/34/24T
-
BOTTOM BRACKET
Sealed Cartridge Bearings, Square Taper
-
CHAIN
KMC Z8
-
CASSETTE
SunRace 7-Speed, 11-34T
-
BRAKE, FRONT
Power CX7 Mechanical Disc, Shimano Pad Compatible, 160mm Rotor
-
BRAKE, REAR
Power CX7 Mechanical Disc, Shimano Pad Compatible, 160mm Rotor
-
BRAKE LEVERS
Shimano w/ Integrated Shifters
-
HANDLEBAR
Marin 31.8 Riser, 12mm Rise, 740mm Width
-
STEM
Marin Alloy, 31.8mm Clamp, 45mm
-
GRIPS
Marin Dual Density
-
HEADSET
FSA No.10-P
-
SEATPOST
Marin Alloy, 27.2mm
-
SADDLE
Marin MTB
-
PEDALS
Nylon Platform
Specifications, pricing, and availability are subject to change without notice.
GEOMETRY
| XS | S | M | L | |
|---|---|---|---|---|
| STACK | 580.8 | 585.5 | 590 | 595 |
| REACH | 400 | 415 | 430 | 445 |
| HEADTUBE ANGLE | 68.5° | 68.5° | 68.5° | 68.5° |
| HEADTUBE LENGTH | 100 | 105 | 110 | 115 |
| SEATTUBE ANGLE | 74° | 74° | 74° | 74° |
| SEATTUBE LENGTH | 330 | 381 | 431 | 481 |
| TOPTUBE EFFECTIVE | 566.5 | 583 | 599.2 | 615.5 |
| BB HEIGHT | 307 | 307 | 307 | 307 |
| BB DROP | 48 | 48 | 48 | 48 |
| CHAINSTAY | 438 | 438 | 438 | 438 |
| WHEELBASE | 1092.5 | 1109.4 | 1126.2 | 1143 |
| STANDOVER HEIGHT | 603.23 | 623.39 | 661.28 | 706.74 |
| FORK OFFSET | 44 | 44 | 44 | 44 |
| SEATPOST DIAMETER | 27.2 | 27.2 | 27.2 | 27.2 |
| HANDLEBAR WIDTH | 740 | 740 | 740 | 740 |
| STEM LENGTH | 45 | 45 | 45 | 45 |
| CRANK LENGTH | 170 | 170 | 170 | 170 |
All lengths in millimeters
TECHNOLOGY
WOMEN’S FIT GEOMETRY
The Wildcat Trail features Women’s Fit Geometry to better fit female riders with components like women’s-specific saddles, narrower bars, and adjustable reach brake levers.
27.5” WHEELS
27.5” wheels fit most riders better and create a lightweight and responsive bike.
SERIES 2 ALUMINUM FRAME
The Wildcat Trail 3 has a Series 2 6061 butted and hydroformed aluminum frame with a 120mm travel suspension fork and 27.5” wheels.
SERIES 1 ALUMINUM FRAME
The Wildcat Trail 1 has a disc specific Series 1 6061 butted and hydroformed aluminum frame with a replaceable derailleur hanger and an integrated headset.
